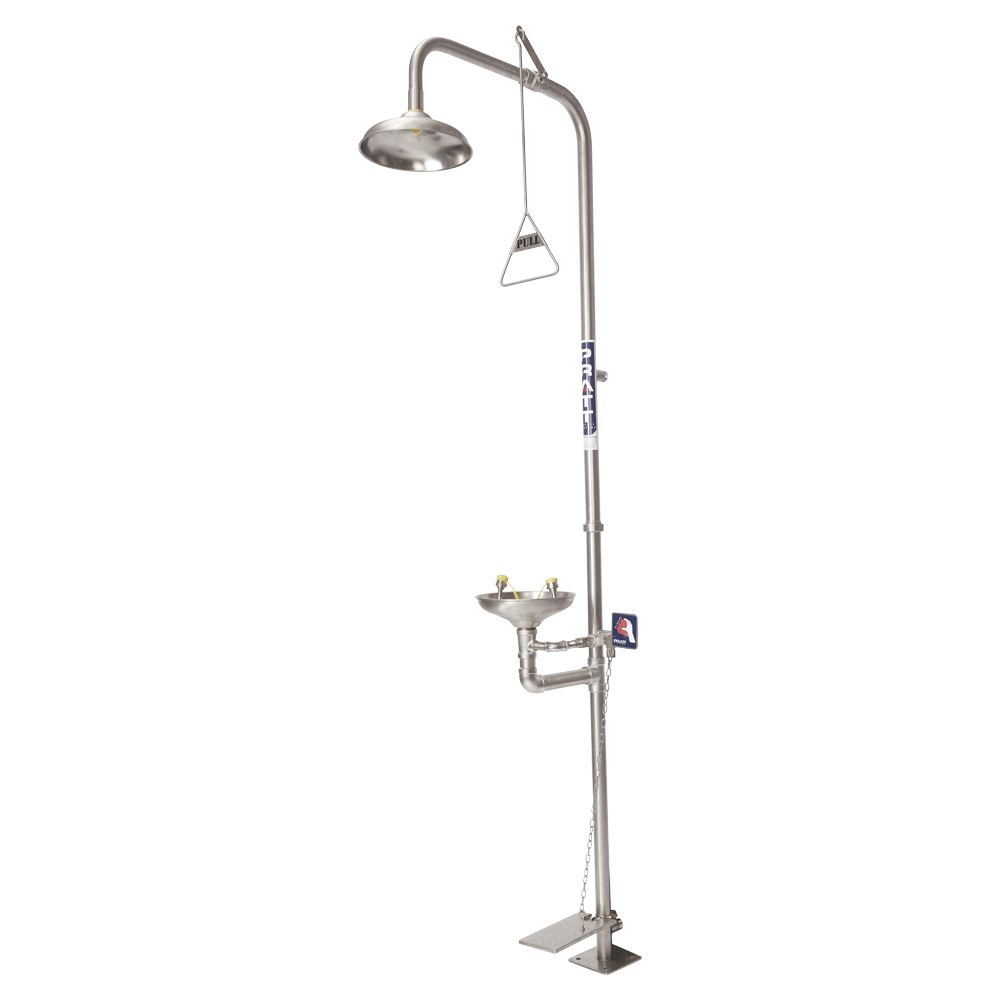

SE693 - Pratt Combination Shower With Single Nozzle Eye Wash, Bowl and Foot Treadle

This all stainless steel model is made from 304SS and features a new design including a stronger shower stanchion, eye wash nozzle assembly, bowl assembly, foot treadle and a new shower head featuring Swirltech spray nozzle technology. The shower nozzle delivers a water spray with a broad and even pattern ensuring optimum decontamination. The shower spray nozzle also includes an inbuilt 80 LPM flow regulator. The new eye wash nozzle assembly, including nozzle heads, are made from 304SS with aerated water spray, pop off dust covers, and flow control adjustment. The eye wash can be activated by either hand or foot.

• INLET CONNECTION: 25mm BSPM
• OUTLET CONNECTION: 25mm BSPM
• SHOWER FLOW RATE: 80LPM @ 210kPa
• EYE WASH FLOW RATE: 15LPM @ 210kPa
• RECOMMENDED MINIMUM SUPPLY CONNECTION: 25mm
• RECOMMENDED MINIMUM WATER SUPPLY: 110-120 LPM @ 210kPa

Australian Standard: AS4775
